72V Battery Series
High-performance lithium battery solutions for electric mobility and industrial applications

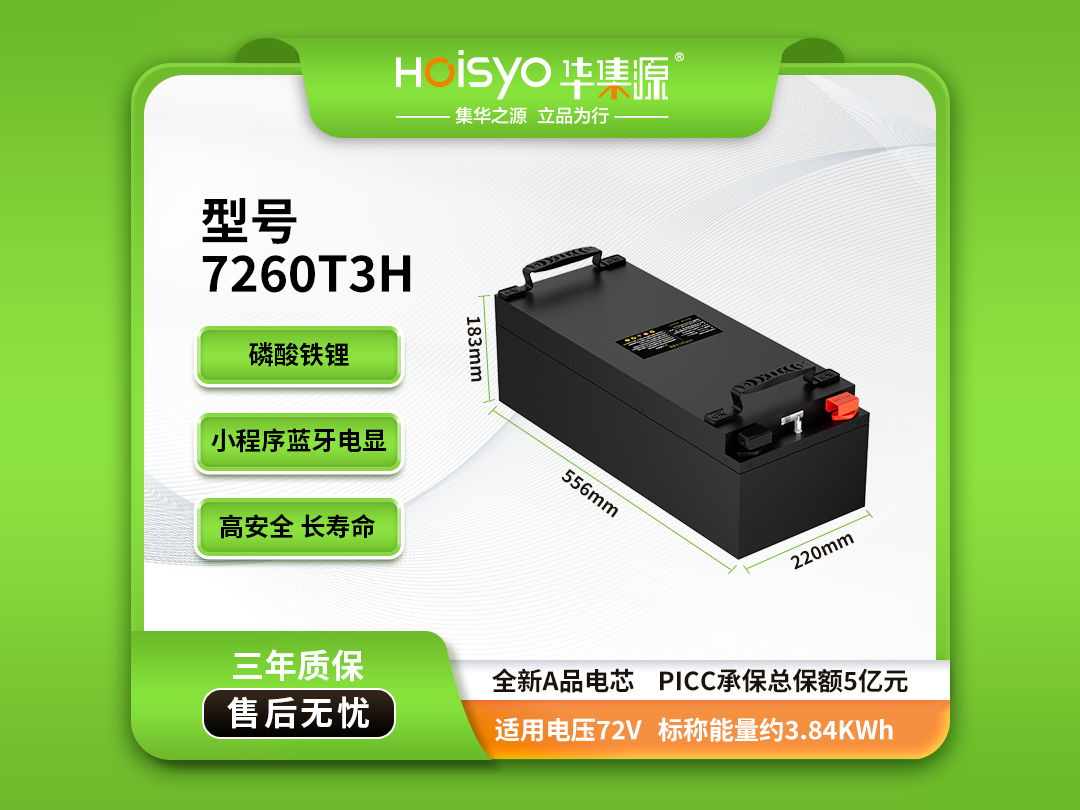

Model 7260T3H
Premium 72V lithium battery pack designed for electric scooters, e-bikes, and light EVs. Features advanced BMS protection and extended cycle life.
Key Features
- ✓ High energy density (280Wh/kg)
- ✓ Advanced BMS protection
- ✓ 2000+ charge cycles
- ✓ Fast charging capability
- ✓ -20°C to 60°C operating range
- ✓ IP65 water resistance
Product Details
Heating Version Available
Our 72V series includes optional heating functionality for cold climate operation. The 72160T1 and 72160T2 heating models ensure optimal performance even in sub-zero temperatures.
- ✓ Self-heating technology
- ✓ Operates down to -40°C
- ✓ Smart temperature management
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 72V (76.8V) |
| Nominal Capacity | 60Ah |
| Energy | 4320Wh (4.32kWh) |
| Cycle Life | ≥2000 cycles @80% DOD |
| Max Continuous Current | 100A |
| Peak Current | 200A (30s) |
| Charging Temperature | 0°C to 45°C |
| Discharging Temperature | -20°C to 60°C |
| Dimensions | Customizable |
| Weight | ~15kg |
| Certifications | UN38.3, CE, RoHS |
Applications
🛵
Electric Scooters
High-performance power for urban mobility
🚴
E-Bikes
Extended range and reliable power
🏭
Industrial Equipment
AGV, forklifts, and material handling
